BMC GII E-20A/E-20AJ Auto CPAP Machine

J MED

  • Dhs. 2,750.00
    Unit price per
Tax included. Shipping calculated at checkout.


FREE DELIVERY TO YOUR ADDRESS IN UAE



Disclaimer: This item may be intended for use by healthcare professionals only.



2 Model Options:

  •  BMC GII Auto CPAP Machine E-20AJ -H-O (LOWER SPECS)
  •  BMC GII Auto CPAP Machine E-20A -H-O (HIGHER SPECS)

-----Nine Core Technologies-----

E-20A contains three working modes: APAP, CPAP and Titration. Applicable to sleep snoring and sleep apnea. More choices, more convenient.

3.5inch LCD screen, factory high-definition soft screen protector. Interactive user interface, ergonomic button design. Simple and intuitive, convenient experience.
From the source of the noise, the devices are noise-reduced. After the sound level meter is detected, the output is strictly controlled at less than30dB. Everything is only for the meditation of you and your family.

Dialysis flow sensor engine, with integrated batteries respond quickly, microcomputer algorithm feedback is sensitive, superior performance provides stable performance, naturally touch your breath.

The high-cost original turbofan enables E-20A to have strong and stable pressure control. The core design of the cutting-edge drilling technology is durable and world-renowned.

E-20A will records the using data in time. You can read all the data by scanning the QR code to realize your own sleep condition and enjoy more international services.

The water temperature in the humidifier water tank is kept constant at the set temperature, which can reduce the stimulation of the respiratory tract and allow you to enjoy a smooth and unobstructed night.

E-20A with masks and other related accessories have been supplied to many hospitals at home and abroad, using healthy and environmentally-friendly machine materials and soft and healthy silicone cushion.

RESlex pressure release function reduce pressure approperatelyat the beginning of the breath to let patients feel more comfortable and breathe more easily. Also, ithas a variety of danger alarm reminder, reliable and intimate.

Appearancce

Buttons & Details

Mute Button:Press this button to mute the alert. Hold it for 3s,check iCode.
Knob:Start treatment and adjust device settings.Indicate the power supply statute.
Button Ramp:Enable the Ramp feature.
Outlet Air:Deliver humidified air to the patient; connect to the air tubing.
Observation Window:Observe the water level in the water chamber.
Water Inlet:The water inlet is in the bottom of the water storage tank.

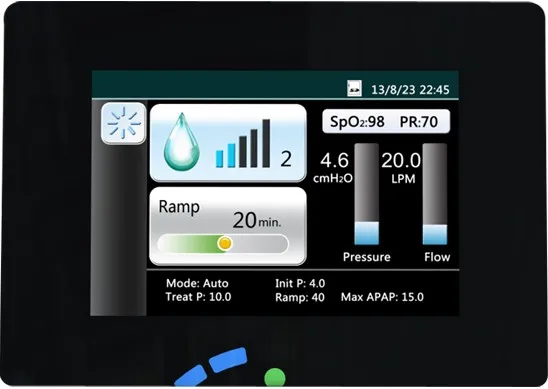

Screen Display

Ramp:Display the remaining time.
Humidifier:Display set state.
Humidifier Indicator:Indicate the humidity level, there are five levels in total.
Ventilation Condition:Treatment Pressure/Minute Ventilation Volume/SpO2/ Pulse Rate.
Patient Menu


Option

Description

SpO2

Optional, please tell customer service if necessary

Humidifier

Let the inhaled air more humid, more comfortable

Ramp Time

Time to use the machine to enter treatment pressure

Mask Type

Select the type of mask you are equipped with

iCode

Scan iCode, access to treatment data

Brightness

The brightness of the machine screen is adjustable

*Notice:The patient's menu will not cover all the machine functions and options, more settings included in doctor's menu.

Doctor Menu


Option

Description

Mode

CPAP, AUTO

Treat P

Treat P is the lowest pressure device deliver for OSA

Max Ramp

Take reference of average time for patients to fall asleep

Ramp P

Pressure being delivered while patients are awake

Max P

Max P is the largest pressure being set under Auto mode

Sensitivity

Five levels for pressure rise due to collapse of upper airway

*Notice: We seriously recommend you to follow your doctor's clinical advise before changing settings.

FAQ

Q: Does the machine suitable to use at home? Does it easy to operate?

Yes, it's designed for sleep home care therapy and ventilation. After refer user manual, it will be very easy to operate by End-User.

Q: How to set the machine airway therapy pressure or how to choose the work mode, and change other parameters?

All the settings can be changed in Clinical Menu. (Enter Clinical Menu: When the machine running, please press middle button and right button, hold  them for 5 seconds will into the Clinical Menu.)

Q: Where can I download the analyze software, any software fee required?

Online documentation and software for your BMC products can be downloaded free of charge.

(1) Download website: en.bmc-medical.com

(2) Download Step: [Service] - [Document & Software] - [Therapy and Ventilation Devices]

Q: What is iCode function? How to use iCode phone app?

Software usually for doctor to analysis, but iCode shows basic using data for End-User, more convenient to know recent condition. iCode I is numbers, iCode II is QR picture.

Three ways to use iCode get machine data:

(1) Go to iCode website (bmc-icode.com) , then input machine serial number to get data.

More instructions in [Help] page which on the top of the iCode website.

(2) Stop running machine, press humidifier button on the left of the machine, will come out iCode I numbers. Then download phone app called BMC+, open the phone app,type the iCode I numbers in the phone app to get data.

(3) Also can rotate middle button change iCode I numbers to iCode II QR picture, use phone app sweep QR picture on the machine screen, done!

Q: What is Spo2 kit?

Spo2 kit just like finger pulse rate oximeter, Show your blood oxygen percent on respirator LCD screen.Normal people's blood oxygen percent above 97%, Snoring & Apnea & COPD people usually lower than 95%. (From some point, get to known the effect after using machine for a period)
